An operator (aka – motor) is the mechanical component that drives an automatic door. It converts an electrical signal into physical motion. A motor and gearbox usually do the work. Some systems may use a motor coupler or a pneumatic drive instead.
Some operator motors run on full 110VAC. The motor usually plugs into the control through a molex connector. A few motors carry an integrated lock, like the Condor. On those units, power runs to the lock through the motor. Most modern motor and gearbox systems include an encoder. The encoder reads door position with a magnet.
Is an operator dangerous to service?

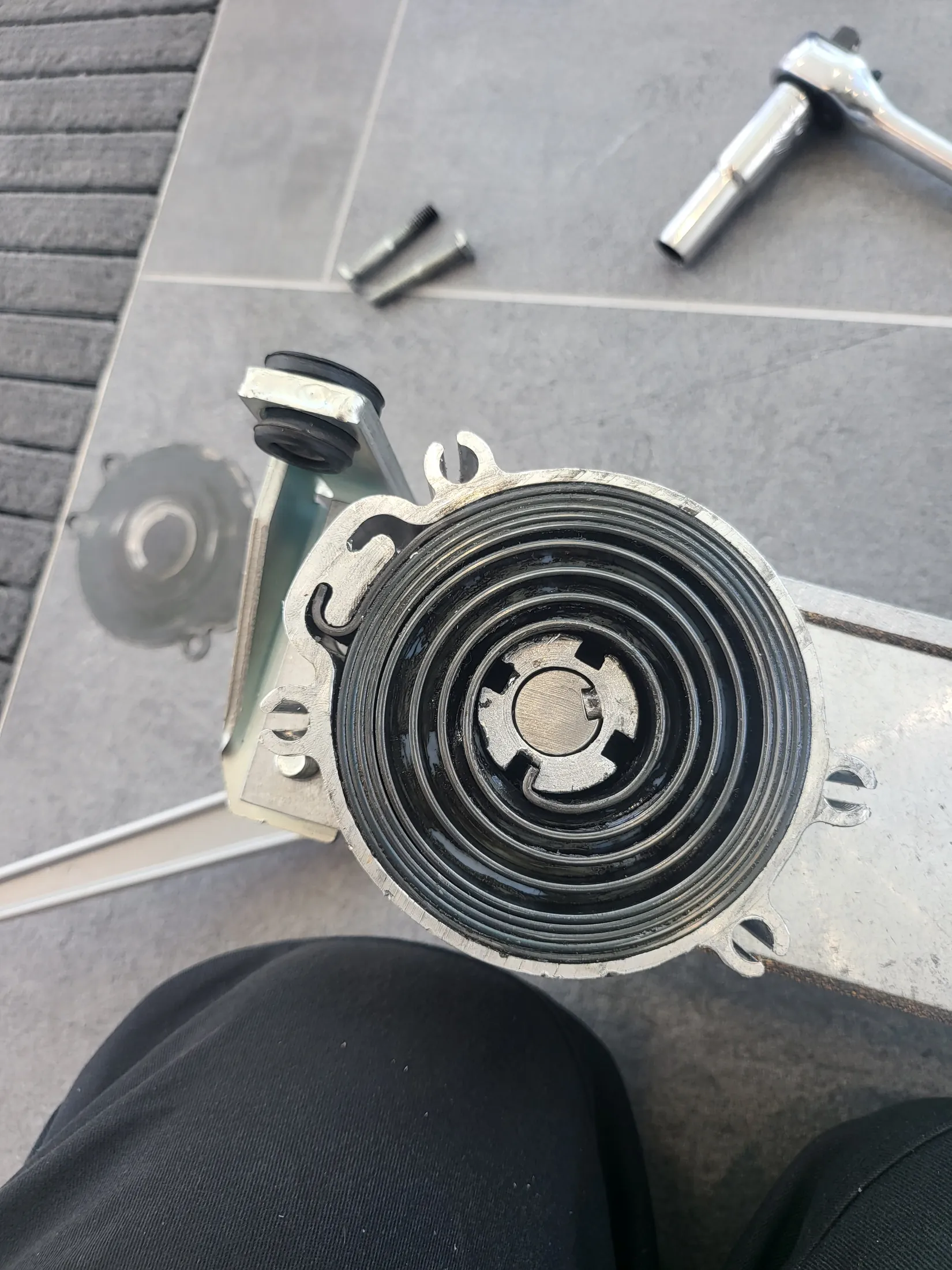

Yes. Do not attempt repair on your own! An operator holds stored energy even when the door sits still. Do not adjust it with the power on! The door can lunge and cause injury. That force can crush a hand or fingers in an instant. Turn the power off or disconnect it whenever you can. Some faults do need power on to trace. Stay clear of the door’s path when they do.
On a sliding door, the operator sits in the header above the opening. Swing doors can vary more. A swing operator can surface-mount on the wall or hide in a concealed overhead box. Others can be built into the frame as a low-energy or an in-ground unit.
How do you know if the motor is bad?
An ohms test usually tells the technician if a motor/operator is damaged. This test checks the motor’s resistance for a fault. When an operator/motor fails, it is a best practice to replace the control at the same time. A bad motor often damages the control, and the reverse happens too. Ordering both together saves you a second service call.
